| GM03 manual powder gun –complete |
| | negative polarity, incl. gun cable –6 m, rinsing air hose –6 m, flat jet nozzle, brush and parts kit, without powder hose | 1008 070 |
| | GM03 manual powder gun –complete | 1008 073 |
| positive polarity, incl. gun cable –6 m, rinsing air hose –6 m, flat jet nozzle, brush and parts kit, without powder hose |
| | Manual powder gun shaft OptiSelect GM03 (incl. cascade) with: | |
| | Gun cable 2 m, negative polarity (–) | 1007 971 |
| | Gun cable 6 m, negative polarity (–) | 1007 972 |
| | Gun cable 12 m, negative polarity (–) | 1007 973 |
| | Gun cable 2 m, positive polarity (+) | 1007 974 |
| | Gun cable 6 m, positive polarity (+) | 1007 975 |
| | Gun cable 12 m, positive polarity (+) | 1007 968 |
| | Gun body | 1007 220 |
| | Cascade –complete, negative polarity | 1007 231 |
| | Cascade –complete, positive polarity | 1007 232 |
| | Print holder –complete | 1007 216 |
| | End plate with hook | 1007 217 |
| | Grip –complete (incl. pos. 5.1 and 5.2) | 1007 961 |
| | Grub screw –M3x8 mm | 1008 157 |
| | Grip sealing | 1007 633 |
| | Trigger –complete | 1007 213 |
| | Trigger cover | 1007 212 |
| | Countersunk-head screw –M4x6 mm | 1000 845 |
| | SuperCorona connection | 1007 238 |
| | Gun cable 2 m –complete | 1007 963 |
| | Gun cable 6 m –complete | 1007 964 |
| | Gun cable 12 m –complete | 1007 965 |
| | Rinsing air connection | 1000 804 |
| | Rinsing air hose | 100 854* |
| | Powder tube –complete | 1007 958 # |
| | Compression spring | 1001 488 |
| | Clip ring | 1007 960 |
| | Hose connection Ø 11-12 mm –complete (incl. pos 15.1) | 1001 340 # |
| | Hose connection Ø 9-10 mm –complete (incl. pos 15.1) | 1002 030 # |
| | O-ring for pos. 15 | 1000 822 # |
| | Threaded sleeve (see corresponding spare parts list) | |
| | Cascade space gasket | 1007 635# |
| | Cleaning brush –Ø 12 mm | 389 765 |
| | Parts set (not shown), consisting of: | 1008302 |
| | Flat jet nozzle NF21 | 1007 935# |
| | Adapter NF08 | 1003634# |
| | Cable clamp | 303 070 |
| | Hose connector –complete, for hose interior Ø 9-10mm | 1002030 |
| | Corona PC05 | 1008 165# |
| | NF20 Profiles/flat parts (standard nozzle) | 1010 090 |
| | NF27 Profiles/flat parts | 1010 752 |
| | NF21 Complex profiles and depressions | 1007 935 |
| | NF22 Complex parts (deep recess), target spraying | 1008 145 |
| | NF24 Large surfaces | 1008 147 |
| | electrode | 1007 683 |
| | NF20 flat nozzle complete | 1010 160 |
| | NF27 flat nozzle complete | 1010 754 |
| | NF21 flat nozzle complete | 1007 932 |
| | NF22 flat nozzle complete | 1008 140 |
| | NF24 Large surfaces | 1008 142 |
| | Threaded sleeve | 1008 326 |
| | Threaded sleeve | 1007 229 |
| | NS04 Round jet nozzle | 1008 151 |
| | round electrode | 1008 152 |
| | Round jet nozzle complete | 1008 150 |
| | Threaded sleeve | 1007 229 |

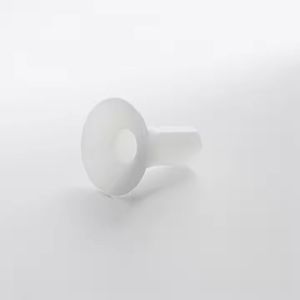

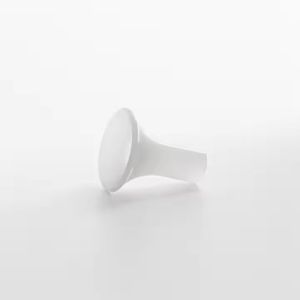

| | Deflectors Ø 16mm | 331 341 |
| | Deflectors Ø 24 mm | 331 333 |
| | Deflectors Ø 32 mm | 331 325 |
| | Deflectors Ø 50 mm | 345 822 |
| | Gun extensions without nozzle L = 150 mm | 1008 616 |
| | Gun extensions without nozzle L = 150 mm | 1007 718 |
| | Gun extensions with Flat jet nozzle NF25 L = 150 mm | 1007 746 |
| | Gun extensions with Round jet nozzle NS09 L = 150 mm | 1007 748 |
| | Gun extensions without nozzle L = 300 mm | 1008 617 |
| | Gun extensions without nozzle L = 300 mm | 1007 719 |
| | Gun extensions with Flat jet nozzle NF25 L = 300 mm | 1007 747 |
| | Gun extensions with Round jet nozzle NS09 L = 300 mm | 1007 749 |
| | NF25 Profiles/flat parts | 1007 735 |
| | NF26 Complex profiles and depressions | 1007 742 |
| | NS09 Suitable for large surfaces | 1008 257 |
| | Electrode | 1007 684 |
| | Electrode | 1008 258 |
| | NF25 flat nozzle complete | 1007 743 |
| | NF26 flat nozzle complete | 1007 744 |
| | NS09 round nozzle complete | 1008 259 |
| | Threaded sleeve | 1007 740 |
| | POE Antistatic powder hoses Ø 11/16 mm | 105 139 |
| | POE Antistatic powder hoses Ø 12/18 mm | 1001 674 |
| | POE Antistatic powder hoses Ø 10/15 mm | 1001 673 |
| | Powder cup 500 ml | 1002 069 |
