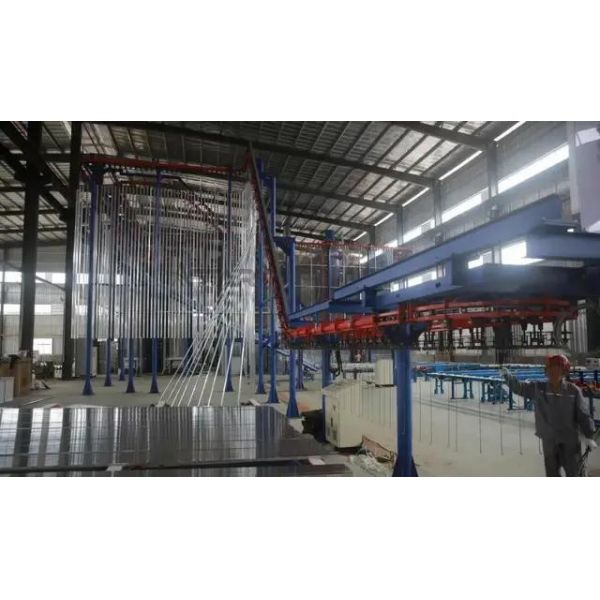

High Efficiency Customized Automatic Aluminium Profile
Electrostatic Powder Coating Line
Introduction
1. Fully automatic custom production line, high inheritance rate.
2. The energy consumption is obviously reduced. In the process of
anodic oxidation and electrophoresis coating, the consumption of
water and electricity is quite large, especially in the oxidation
process. The output current of the rectifier can reach 8000 to
1100, the voltage is between ~ 17.5V, coupled with the heat
consumption of the machine itself, the need to keep cooling with
circulating water, tons of power consumption is often about 1000
degrees, and the reduction of auxiliary facilities can also reduce
some power consumption.
3. The degree of pollution to water and atmosphere is reduced,
alkali, sulfuric acid and other liquid organic solvents are no
longer used, reduce water and air pollution, but also effectively
improve the competitive strength of aluminum profile and plastic
steel profile as environmental protection products, and reduce some
production costs accordingly.
4. The labor intensity of the workers is significantly reduced, and
the automatic assembly line operation is adopted by the dry. The
feeding method and the use method of the central device have been
significantly simplified, which improves the production efficiency
and reduces the labor intensity.
5. The powder coating can completely eliminate the white embossing
on the surface of the profile, cover up some defects on the surface
of the aluminum profile, and improve the surface quality of the
aluminum profile into another.
6. Compared with other surface treated films, some physical indexes
of the coating are significantly improved, such as hardness, wear
resistance and acid resistance, which can effectively prolong the
service life of aluminum profiles.
Feature
Good powder coating effect, good coating adsorption and high
product qualification rate; The powder coating booth is easy to
clean and fast to change color; The powder recovery rate is high,
can be recycled synchronously, save cost, and the working
environment is clean and tidy; Accurate temperature control,
uniform temperature, good spraying effect
Application
This product is widely used in powder coating automobile, aluminum
profile, all kinds of hardware, furniture, etc
Quick Details
| Name | Customized automatic powder coating line for aluminium profile | Chain speed | 3-5m/min |
| Transmission power | 4.0KW | Curing time | 40 minutes |
| Drying power | 60KW | Total length | 200m |
| Circulating fan power | 3KW each set | Distance of workpiece | 4000mm |
| Total power | 90KW | Certificate | CE, ISO9001 |
Advantages and selling points
1. Fast color changeover
2. High efficiency
3. Fully automatic
4. Safety design.
5. Accurate temperature control, temperature difference control in
5 ° C
Package
Wooden case
Company introduction
Astar Machinery Co., Ltd. is a comprehensive service in production,
R&D; and sales, operates mainly in electrostatic spraying
equipment, including electrostatic dust elimination equipment;
electrostatic flocking machine, electrostatic powder spraying
machine, electrostatic liquid spray machine, electrostatic spraying
gun, high voltage.
